Winkelannotationen auf Pfeilen mit Klammern#

Dieses Beispiel zeigt, wie Winkelannotationen zu Pfeilen mit Klammerstilen hinzugefügt werden, die mit FancyArrowPatch erstellt wurden. angleA und angleB werden von einer vertikalen Linie gemessen, positiv (nach links) oder negativ (nach rechts). Blaue FancyArrowPatch-Pfeile zeigen die Richtungen von angleA und angleB von der Vertikalen an, und Achsentexte annotieren die Winkelgrößen.

import matplotlib.pyplot as plt
import numpy as np

from matplotlib.patches import FancyArrowPatch


def get_point_of_rotated_vertical(origin, line_length, degrees):
    """Return xy coordinates of the vertical line end rotated by degrees."""
    rad = np.deg2rad(-degrees)
    return [origin[0] + line_length * np.sin(rad),
            origin[1] + line_length * np.cos(rad)]


fig, ax = plt.subplots()
ax.set(xlim=(0, 6), ylim=(-1, 5))

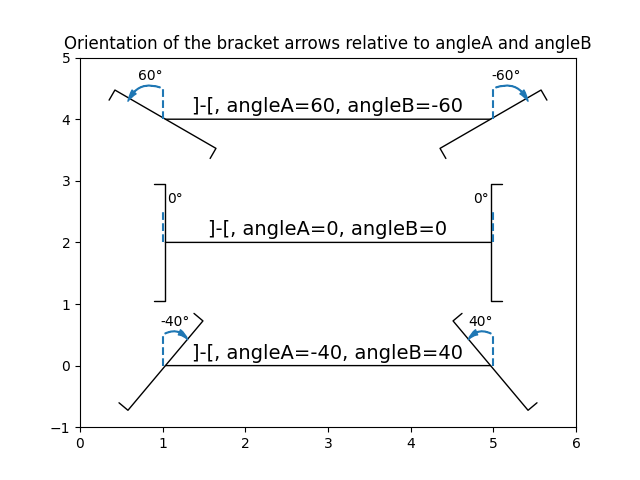

ax.set_title("Orientation of the bracket arrows relative to angleA and angleB")

style = ']-['
for i, angle in enumerate([-40, 0, 60]):
    y = 2*i
    arrow_centers = ((1, y), (5, y))
    vlines = ((1, y + 0.5), (5, y + 0.5))
    anglesAB = (angle, -angle)
    bracketstyle = f"{style}, angleA={anglesAB[0]}, angleB={anglesAB[1]}"
    bracket = FancyArrowPatch(*arrow_centers, arrowstyle=bracketstyle,
                              mutation_scale=42)
    ax.add_patch(bracket)
    ax.text(3, y + 0.05, bracketstyle, ha="center", va="bottom", fontsize=14)
    ax.vlines([line[0] for line in vlines], [y, y], [line[1] for line in vlines],
              linestyles="--", color="C0")
    # Get the top coordinates for the drawn patches at A and B
    patch_tops = [get_point_of_rotated_vertical(center, 0.5, angle)
                  for center, angle in zip(arrow_centers, anglesAB)]
    # Define the connection directions for the annotation arrows
    connection_dirs = (1, -1) if angle > 0 else (-1, 1)
    # Add arrows and annotation text
    arrowstyle = "Simple, tail_width=0.5, head_width=4, head_length=8"
    for vline, dir, patch_top, angle in zip(vlines, connection_dirs,
                                            patch_tops, anglesAB):
        kw = dict(connectionstyle=f"arc3,rad={dir * 0.5}",
                  arrowstyle=arrowstyle, color="C0")
        ax.add_patch(FancyArrowPatch(vline, patch_top, **kw))
        ax.text(vline[0] - dir * 0.15, y + 0.7, f'{angle}°', ha="center",
                va="center")

plt.show()
